This article includes advertising image and video ads specifications for mobile, web and gates as follows:
Image Ad Specifications
Mobile Image Ads
Image files should be prepared with a border around the outside edge of the image that contrasts with the body of the image, or that will contrast with both white and black backgrounds.
|
Ad Size |
320 x 50 320 x 100 300 x 250 |
|
File Size |
150kb or Smaller |
|
File Format |
JPG, PNG, GIF |
|
Banner Display URL |
Up to 20 characters – will be displayed in lower case |
|
Other Requirements |
- Animated GIFs must be 15-20 fps and must not loop. |
If a user taps anywhere on the ad, the mobile application will load the click-through URL using the native web browser and report a click-through event.
Mobile HTML5 Ads
Mobile HTML5 ads consist of a Zip archive containing an index.html file with HTML5, CSS, and JavaScript code, and associated images, stylesheets, scripts, or other asset files. HTML5 ads must be capable of being displayed in an iframe.
The Zip archive for an HTML5 ad must contain all the files necessary to display the ad offline. That is, the mobile app should be able to display the ad using only the Zip file even if the phone does not have data service.
Index.html should be in the root folder. No other file should be named as "index".
|
Ad Size |
320 x 50 320 x 100 300 x 250 |
|
File Size |
150kb or Smaller |
|
Subload Size |
300kb or Smaller |
|
File Format |
Zip archive containing one HTML file and optionally additional CSS, JS, GIF, PNG, JPG, JPEG, and/or SVG files. |
|
Banner Display URL |
Up to 20 characters – will be displayed in lower case |
Mobile HTML5 ads must use the <!DOCTYPE html>, <html>, and <body> tags. Mobile HTML5 ads must use a <meta> tag to identify the size of an ad.
<meta name="ad.size" content= "width=320, height=250">
Mobile HTML5 ads must declare a clickTag variable containing the click-thru URL for each exit.
<script type="text/javascript">
// Change the value of this string to your URL
var clickTag = "https://www.adroll.com";
</script>
Mobile HTML5 ads must declare a clickTag variable containing the click-thru URL for each exit.
Mobile HTML5 ads must use a clickTag variables as parameters to any window open event in the ad code.
<div id="clickArea" style="width: 320px; height: 250px"
onclick="window.open(clickTag ,'_blank');>
If a user triggers any of the exit URLs, the mobile application will load the click-through URL using the native web browser and report a click-through event.
The clickTag should be easy for the ad server to read.
The clickTag and destination URL must be https.
Web Image Ads
|
Ad Size |
250 x 250 300 x 250 336 x 280 300 x 600 426 x 60 728 x 90 970 x 90 970 x 250 |
|
File Size |
5MB or Smaller |
|
File Format |
JPG, PNG, GIF |
|
Banner Display URL |
Up to 20 characters – will be displayed in lower case |
|
Other Requirements |
- Animated GIFs must be 15-20 fps and must not loop. |
Gate Image Ads
|
Ad Size |
600 x 600 |
|
File Size |
10MB or smaller |
|
File Format |
JPG, PNG |
Video Ad Specifications
Mobile Video Ads
Mobile video ads will be displayed in an in-banner format, with a 300x169 thumbnail image and a play button overlay in a 300x250 Medium Rectangle ad unit with a title, description, URL preview and a call-to-action button.
In-stream video ads are currently not supported.
Clicking on the thumbnail image opens a full screen video in 16:9, 4:3, or 9:16 aspect ratio. At the completion of the video, the post-interaction survey is displayed, or if there is no survey, the video closes and returns to the page displaying the thumbnail image and text.
If a user taps anywhere on the text or call-to-action button, the mobile application will open the click-through URL in the native web browser and report a click-through event.
|
Video Ad Size |
300 x 250 |
|
Video Format |
MPEG 4 (.mp4) using the H.264 codec |
|
Dimensions |
16:9 high-resolution: 1920x1080 9:16 high-resolution: 1080x1920 4:3 high-resolution: 1440x1080 No black bars or letterboxing |
|
File Size |
Up to 1 GB for high-resolution source files |
|
Length |
Minimum: 1 second Recommended: less than 30 seconds Maximum: 120 seconds |
|
Frame Rate |
23.98 fps or 29.97 fps |
|
Bit Rate |
At least 20 Mbps |
|
Audio |
Mute (no audio track), PCM, or AAC At least 192 Kbps Sample rate: 48 kHz Sample size: 16 or 24 bits Mono preferred |
|
Thumbnail |
JPG, PNG, or GIF 300x169 Maximum 120 KB |
|
Ad Title |
Up to 16 characters |
|
Ad Description |
Up to 20 characters |
|
Display URL |
Up to 20 characters – will be displayed in lower case |
|
Call-to-Action |
Up to 10 characters – will be displayed in upper case |
|
Destination URL |
Destination URL must be https |

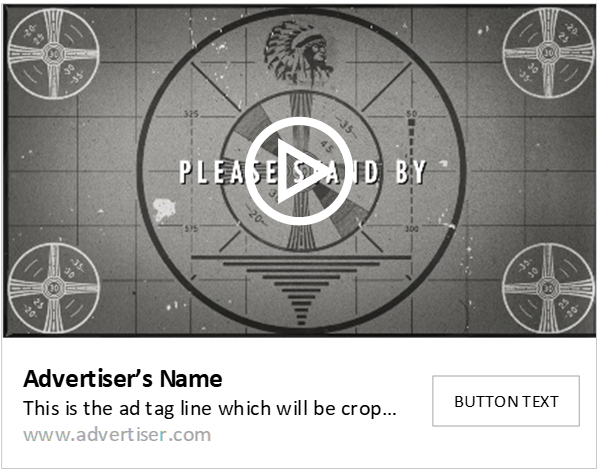

Mobile video ad preview:
Web Video Ads
|
Video Ad Size |
426 x 240 640 x 360 854 x 480 720 x 540 |
|
Video Format |
MOV, MPEG4, MP4, AVI, WMV, MPEGPS, FLV, 3GPP, WebM. |
|
Dimensions |
16:9, 9:16, or 4:3 high resolution No black bars or letterboxing |
|
File Size |
Up to 1 GB for high-resolution source files |
|
Length |
Minimum: 1 second Recommended: less than 30 seconds Maximum: 300 seconds |
|
Frame Rate |
|
|
Bit Rate |
|
|
Audio |
|
|
Thumbnail |
JPG, PNG, or GIF |
|
Ad Title |
Up to 30 characters |
|
Ad Description |
Up to 90 characters |
|
Display URL |
Up to 20 characters – will be displayed in lower case |
|
Call-to-Action |
Up to 10 characters – will be displayed in upper case |
|
Destination URL |
Destination URL must be https |
Gate Video Ads
|
Video Ad Size |
600 x 600 |
|
Video Format |
MOV, MPEG4, MP4, AVI, WMV, MPEGPS, FLV, 3GPP, WebM. |
|
Dimensions |
1:1 high resolution No black bars or letterboxing |
|
File Size |
Up to 600 MB for high-resolution source files |
|
Length |
Minimum: 1 second Recommended: less than 30 seconds Maximum: 30 seconds |
|
Frame Rate |
|
|
Bit Rate |
|
|
Audio |
|
|
Thumbnail |
JPG, PNG, or GIF |
